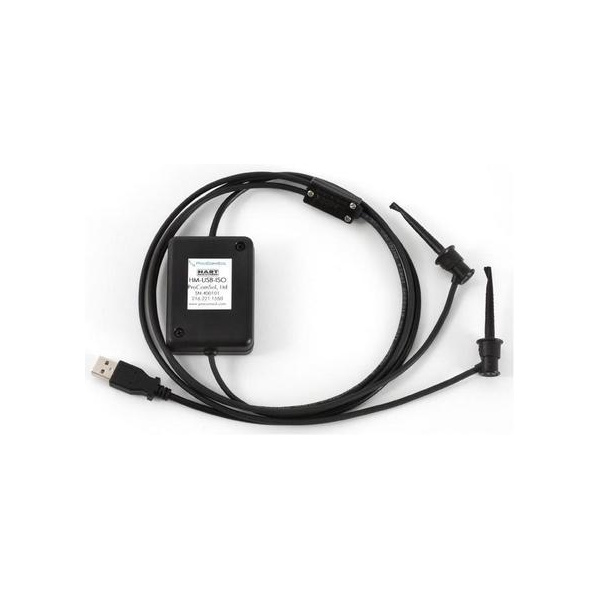

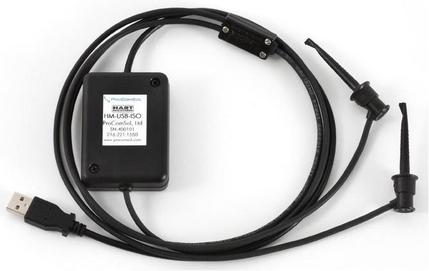

FieldComm Group registered HART compliant Modem with a USB interface. Connects your PC and Android devices to your HART instruments for instrument configuration and monitoring.
Benefits of the HM-USB-ISO, USB HART Modem
Gain the following benefits upon purchasing the HART interface USB:
- Easy to install Virtual Serial Port for any Windows application
- Compact size 3.0” x 2.0” x 0.8” (70mm x 51mm x 20mm)
- Certified to meet HART Physical Layer Spec HCF_SPEC-54
- Cost effective
- 1 Year warranty
Features of the HART Interface USB
With the HM-USB-ISO you will also receive these great features:
- FieldComm Group Registered, Registration Number L2-06-1000-070
- CE Certified, CE Declaration
- RoHS (lead free), RoHS Declaration
- 1500 Vdc Opto Isolation between HART and USB circuits
- USB 1.1 and 2.0 compatible
- Integral standard USB type A connector
- Integral heavy duty HART Minigrabber connectors
- Self powered, no external power supply or batteries needed
- 48” (1.2m) cable length
- Rugged ABS plastic enclosure with rubber boot
- Custom cable lengths available
- Banana plug option available (HM-USB-ISO-BP)
- HART Modem Test Program included
- Boost feature for low resistance loops (requires DevCom2000)
- Guaranteed to work with Windows 7 through 10
- Guaranteed to work with 32 and 64 bit Windows computers
