Overview:

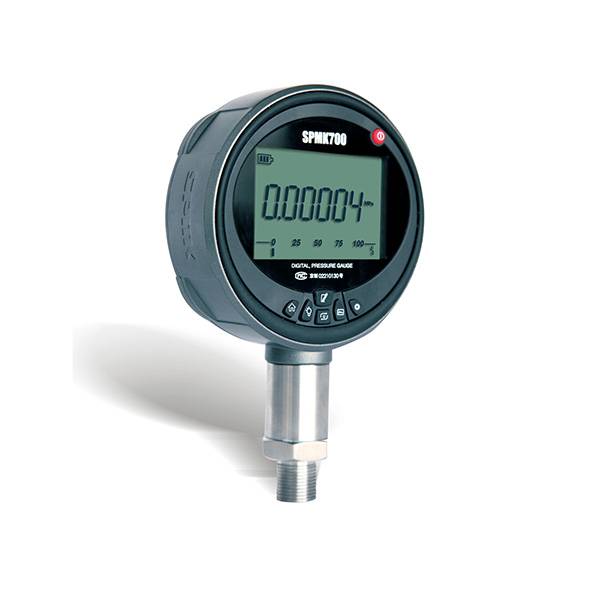

With advanced microprocessor technology and high-tech silicon pressure sensors, SPMK700 digital pressure gauge provides an accurate, reliable and economic solution for wide range of pressure applications. Each silicon pressure sensor in gauges has been specially tested and screened before assembly.
Features:
Pressure ranges to 36,000 psi (2,500 bar)
Accuracy of ±0.025% FS, ±0.05%FS(± 0.1%FS) , ±0.2%FS
Large display with backlit
Optional 10 pressure units: Pa, kPa, MPa, mmHg, kfg/cm 2 ,cmH2O, mmH2O, psi, mbar, bar
National explosion-proof certification approved (Certificate#.: Exia II CT4Ga)
Technical Specifications:
Environmental Temperature: 0~122°F (0~ 50°C)
Environmental Relative humidity: ≤95%R.H
Atmospheric pressure: 0.86~1.01 bar ( 86~101kpa)
Adaptor: M20x1.5 optional
Power: Rechargeable lithium battery or power adapter
Dimension: φ120×45(mm)
Net Weight: 0.7kg
